Photochemical Machining: Enabling the Next Generation of Closed-Loop Heat Exchanger and Chiller Systems
As distributed power generation technologies continue to evolve, thermal management has emerged as one of the most critical engineering challenges in the energy sector. Whether supporting hydrogen fuel cells, microturbines, battery storage systems, CHP installations, or advanced power electronics, modern distributed energy systems depend heavily on compact, highly efficient closed-loop heat exchangers and chillers to maintain reliability and optimize performance.
One manufacturing technology gaining significant attention in this space is photochemical machining (PCM), also known as chemical etching or photo etching. Originally developed for precision electronics and aerospace applications, PCM is now proving invaluable for producing the intricate metallic components required in next-generation thermal systems.
By enabling highly precise, burr-free, stress-free metal fabrication, PCM is helping engineers design more compact, efficient, and scalable heat exchanger architectures for distributed power generation.
What Is Photochemical Machining?
Photochemical machining is a subtractive manufacturing process that uses photoresist imaging and controlled chemical etching to create complex geometries in thin metal sheets. Unlike stamping, laser cutting, or mechanical machining, PCM introduces no heat-affected zones or mechanical stresses into the material.
The process typically involves:
- Applying a photoresist mask to a metal sheet
- Exposing the design using UV light
- Developing the patterned image
- Chemically etching exposed metal regions
- Removing the remaining resist
The result is an extremely precise metal component capable of incorporating fine channels, microstructures, apertures, and complex fluid flow geometries.
Because many advanced heat exchanger and chiller systems rely on thin metallic layers with intricate internal flow paths, PCM is particularly well suited to thermal management applications.
Why PCM Matters in Distributed Power Generation
Distributed power systems are increasingly moving toward higher power densities and more compact designs. This trend places enormous pressure on thermal management systems to remove heat efficiently while minimizing size, weight, and pumping power.
Closed-loop heat exchanger systems must deliver:
- High heat transfer efficiency
- Low pressure drop
- Corrosion resistance
- Compact packaging
- Leak-tight operation
- Long-term reliability
PCM enables many of these objectives simultaneously by allowing engineers to fabricate highly optimized metallic flow structures that would be difficult or prohibitively expensive to produce using traditional manufacturing methods.

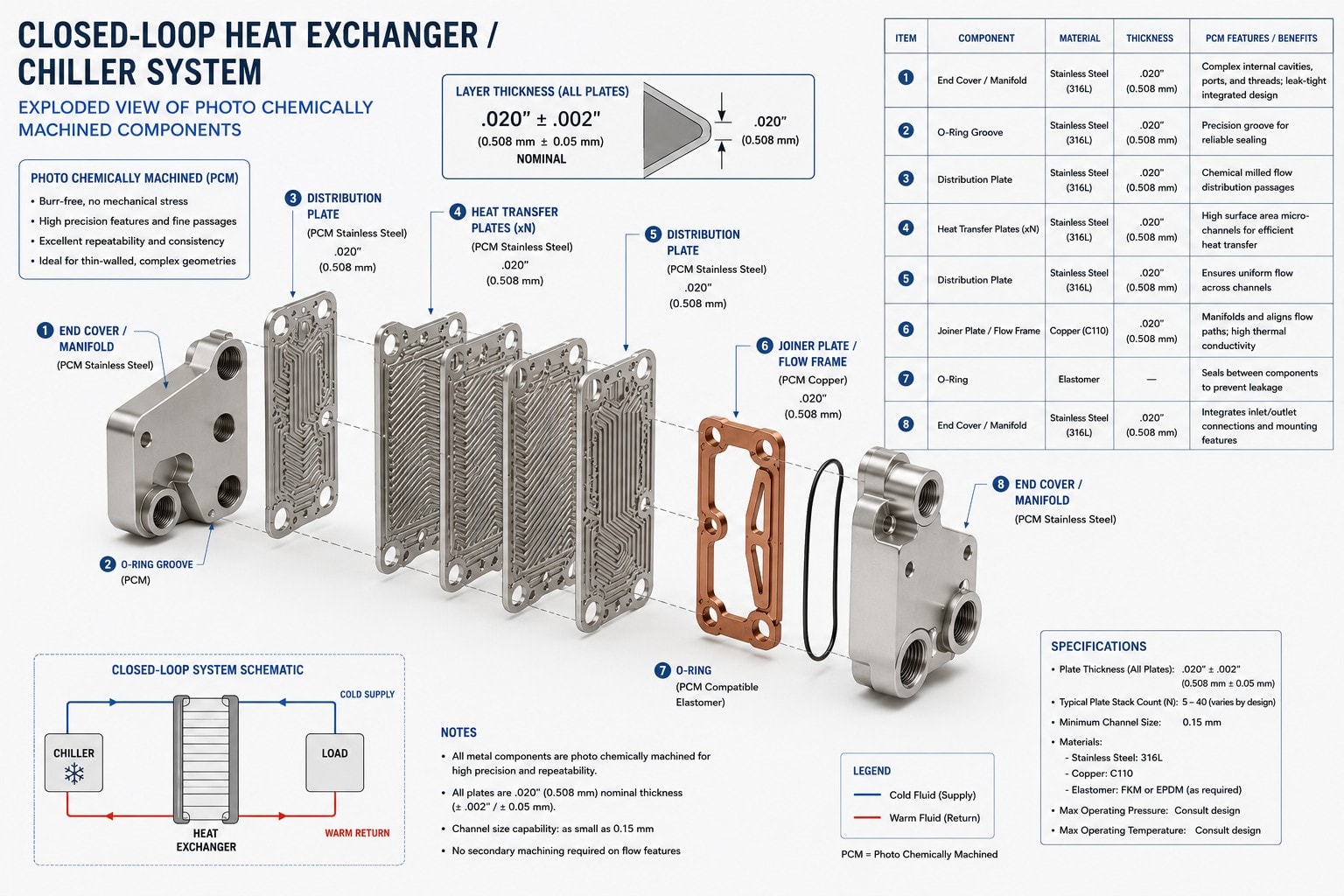

Compact Plate Heat Exchangers
One of the most important PCM applications is in compact plate heat exchangers (PHEs). These systems use thin metal plates stacked together to maximize surface area for heat transfer.
PCM allows manufacturers to produce:
- Chevron flow patterns
- Turbulence promoters
- Microstructured surfaces
- Flow distribution manifolds
- Thin diffusion-bonded layers
These etched geometries improve turbulence and thermal mixing, significantly increasing heat transfer performance while reducing overall system size.
In distributed energy systems, compact PHEs are commonly used in:
- Fuel cell cooling loops
- Waste heat recovery systems
- Organic Rankine Cycle (ORC) units
- Microturbine recuperators
- Thermal storage systems
Because PCM works well with stainless steel, titanium, nickel alloys, and copper, it supports both corrosive and high-temperature thermal environments.
Microchannel Heat Exchangers
Microchannel heat exchangers represent another rapidly growing application area. These systems use extremely small flow passages to dramatically increase heat transfer surface area.
PCM is particularly effective for producing:
- High-density microchannel arrays
- Thin separator plates
- Integrated manifolds
- Multi-depth channel structures
- Precision coolant pathways
Microchannel architectures are increasingly important in:
- Hydrogen fuel cell systems
- Battery energy storage cooling
- Power electronics thermal management
- Data center microgrids
- Supercritical CO₂ systems
The ability to fabricate channels measuring only a few hundred microns wide makes PCM one of the few scalable manufacturing methods suitable for advanced microfluidic thermal systems.
Fuel Cell Bipolar Plates
Hydrogen fuel cells are becoming a cornerstone technology for distributed power generation, especially in transportation, backup power, and grid-edge applications.
PCM plays a major role in manufacturing metallic bipolar plates, which are essential for directing gases and coolant throughout the fuel cell stack.
Using PCM, manufacturers can create highly precise:
- Serpentine flow channels
- Parallel flow fields
- Interdigitated patterns
- Coolant passages
- Water management structures
The process also supports rapid prototyping and design iteration, allowing fuel cell developers to optimize flow geometries for efficiency and durability.
Because PCM creates smooth, burr-free surfaces without mechanical distortion, it helps improve sealing performance and stack reliability in demanding operating environments.
Recuperators for Microturbines
Microturbines rely heavily on recuperators to improve cycle efficiency by recovering waste heat from exhaust gases.
These recuperators often require extremely thin metallic foil structures with complex internal geometries that maximize thermal transfer while minimizing pressure losses.
PCM enables fabrication of:
- Offset fin structures
- Corrugated flow layers
- Counterflow channel networks
- Thin foil heat transfer plates
Once etched, these layers can be diffusion bonded or vacuum brazed into compact, high-efficiency recuperator cores.
The resulting systems offer:
- Faster thermal response
- Reduced weight
- Smaller footprints
- Improved overall turbine efficiency
For distributed power installations where space and efficiency are critical, PCM-based recuperators offer a significant advantage.
Thermal Management for Power Electronics
Modern distributed energy systems depend heavily on advanced power electronics, including:
- Inverters
- IGBTs
- SiC and GaN semiconductors
- Power converters
- Fast-charging infrastructure
These components generate substantial heat loads within very compact packages.
PCM supports thermal management through the production of:
- Cold plates
- Jet impingement structures
- Vapor chamber components
- Turbulence enhancement features
- Precision coolant distribution layers
Because PCM can create highly intricate flow paths in thin metal substrates, it enables superior cooling performance while maintaining lightweight and compact designs.
This capability is increasingly important as electrification drives higher power densities across renewable energy and microgrid systems.
Printed Circuit Heat Exchangers (PCHEs)
One of the most advanced PCM applications involves printed circuit heat exchangers, or PCHEs.
PCHEs consist of chemically etched metal plates that are diffusion bonded into a solid core capable of handling extreme temperatures and pressures.
These heat exchangers are becoming critical for:
- Supercritical CO₂ Brayton cycles
- Hydrogen liquefaction systems
- Advanced nuclear reactors
- Aerospace energy systems
- High-performance industrial chillers
PCM is fundamental to PCHE manufacturing because it creates the highly precise etched flow channels required before bonding.
The resulting systems provide exceptional:
- Thermal efficiency
- Structural strength
- Compactness
- Corrosion resistance
As distributed energy systems increasingly adopt high-efficiency thermal cycles, PCM-enabled PCHE technology is expected to see substantial growth.
The Future of PCM in Energy Systems
The future of photochemical machining in thermal management looks extremely promising. Several industry trends are accelerating adoption, including:
- Hydrogen infrastructure expansion
- Electrification of industrial systems
- Higher-density power electronics
- Modular energy systems
- AI-driven thermal optimization
- Compact heat recovery technologies
PCM is also benefiting from advances in generative design software, which can create highly optimized flow structures inspired by biological systems and topology optimization algorithms.
Because PCM can economically reproduce these intricate geometries in thin metal sheets, it is becoming a key enabling technology for next-generation thermal architectures.
In many ways, PCM sits at the intersection of precision manufacturing, energy efficiency, and advanced materials engineering.
Conclusion
As distributed power generation technologies continue to push toward higher efficiency, smaller footprints, and greater thermal performance, photochemical machining is emerging as a critical manufacturing solution.
From fuel cell bipolar plates and microchannel heat exchangers to compact recuperators and printed circuit heat exchangers, PCM enables the complex metallic structures modern thermal systems require.
Its ability to produce precise, stress-free, high-density flow geometries in thin metal materials makes it uniquely suited for the evolving demands of closed-loop heat exchanger and chiller systems.
In the coming decade, PCM will likely play an increasingly important role in enabling cleaner, more efficient, and more compact distributed energy technologies across the global power landscape.
